The HIK MicroScope Adaptor Clamp securely attaches to the separately available Clip-on Lens system and the objective bell of your optical scope, providing the mounting point to quickly attach and disconnect your Thunder thermal module.
KEY FEATURES
The 40mm adaptor is to be used with the HIKMICRO Thunder Smart Thermal Scope.
The HIK MicroScope Adaptor Clamp securely attaches to the separately available Clip-on Lens system and the objective bell of your optical scope, providing the mounting point to quickly attach and disconnect your Thunder thermal module.
KEY FEATURES
The 60mm adaptor is to be used with the HIKMICRO Thunder Smart Thermal Scope.

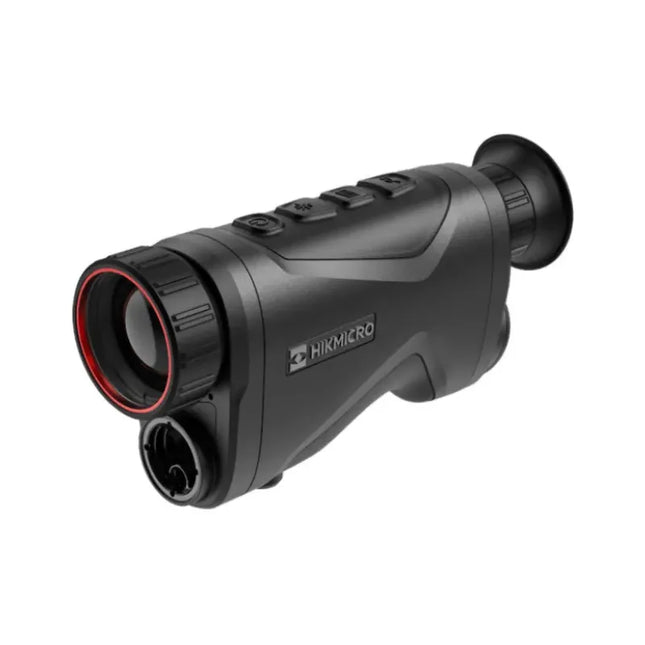

The HIKMICRO Lynx LC06S thermal monocular is equipped with a 160×120 infrared detector and a 800 x 600 OLED display. The Lynx series boasts features such as on-board recording, WiFi streaming, a HD OLED display screen. The HikMicro Lynx LC06S is ideal for an entry level thermal monocular due to its affordable price and high quality. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The HikMicro Lynx LC06S is the perfect tool for law enforcement, border patrol, security and hunting.
\
Thermal Module
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
160 × 120
Frame Rate
50 Hz
Pixel Interval
17 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 35 mK (@25°C, F# = 1.1)
Lens (Focal Length)
6.2 mm, F1.1
Detection Range
250m
Focus Mode
Focus Free
Min. Focusing Distance
1m
Magnification
1.0× to 4.0× (4×)
Field of View(H × V),
24.7° × 18.7° / 43.8 m × 32.9 m
Degrees / m @100 m
Image Display
Display
800 × 600, 0.32-inch, OLED
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction)
Auto, Manual, External Correction
Mode
Exit Pupil
20 mm
Eye Relief
6 mm
Miniature power elements used in Axion, Thermion & Digex models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with charger station or in the unit.
