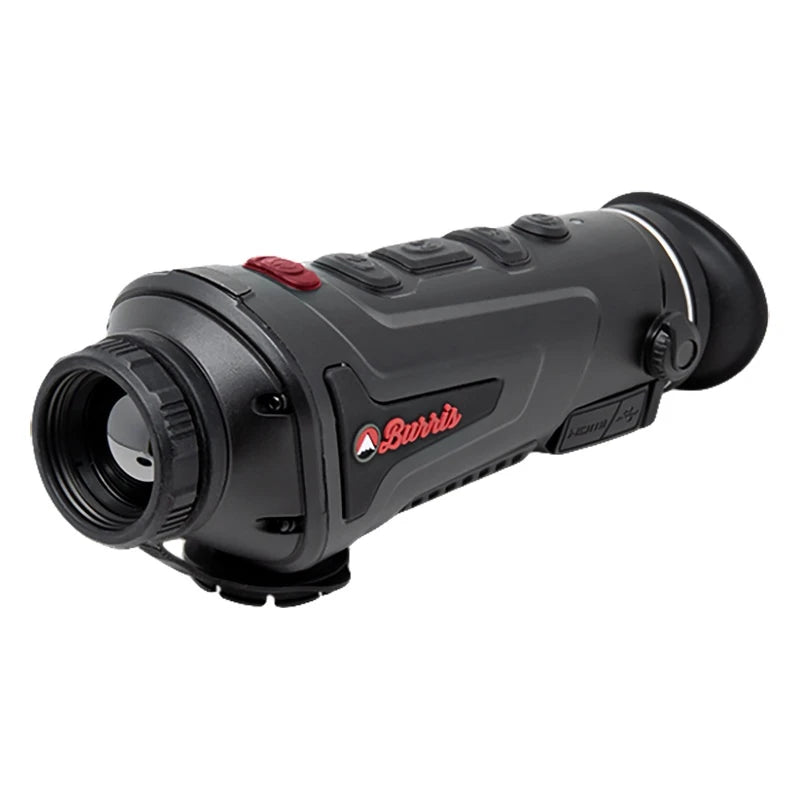

BURRIS THERMAL HANDHELD MONOCULAR - BTH35

Description

With a modern, lightweight design the Thermal Handheld has the ability to hot track targets over 750 yards away. The smooth zoom and real time wifi-to-mobile connection keeps you locked on your target. Connection allows you to control and record the handheld from your mobile phone.

BTH Series Specifications;

  Main BTH-50 BTH-35
Sensor
400x300 @ 17µm
400x300 @ 17µm
Objective lens
F50/1.2 F35/1.2
Magnification, x
3.3 – 13.2 (x4 digital)
2.3 – 9.2 (x4 digital)
Field of view (HxV), degrees / m@100m
7.5° x 5.6°
10.7° x 8.0°
Detection range, m
1700
1400
  Sensor

Type
uncooled
uncooled
Resolution, pixels
400x300
400x300
Pixel pitch, µm
17
17
NETD, mK
tba
tba
Frame rate, Hz
50
50
  Optics


Objective lens
F50/1.2 F35/1.2
Magnification, x
2.3 – 9.2 (x4 digital)
1.7 – 6.8 (x4 digital)
Field of view (HxV), degrees / m @ 100 m
7.5° x 5.6°
10.7° x 8.0°
Eye relief, mm
48
48
  Display


Type
OLED
OLED
Resolution, pixels
1024x768
1024x768
Picture in Picture
yes
yes
  Range Performance


Detection range, m
tba
tba
  Laser Rangefinder


Safety Class for laser equipment according IEC 60825-1:2014
-
-
Wavelength, nm
-
-
Max. measuring range, m
-
-
Measurement Accuracy, m
-
-
  Reticle


Click value, H/V, mm at 100 m
-
-
Click range, H/V, mm at 100 m
-
-
Number of preloaded reticles
10
10
  Video Recorder
analogue out
analogue out
Video / photo resolution, pixel
-
-
Video / photo format
-
-
Built-in memory, Gb
-
-
  Wi-Fi


Wireless Protocol
-
-
Wireless Standard
-
-
Frequency, GHz
-
-
  Bluetooth


Wireless Protocol
-
-
Wireless Standard
-
Frequency, GHz
-
-
  Environmental Characteristics


Degree of protection, IP code (IEC60529)
IP67 IP67
Operating temperature range, °C
-
-
  Connections and Compatibilities


Max. recoil power on rifled weapon (Eo), Joules
tba
tba
Shock resistance on the smooth-bore rifles, caliber
tba
tba
Mounting brackets on weapon
picatinny rail
picatinny rail
Remote Control
-
-
Supported Appplication
-
-
  Power Supply


Output voltage, V
-
-
Battery type
1x 18650
1x 18650
Capacity, mAh
recommend 3400
recommend 3400
Operating time on battery pack (at t=22°C), h *
up to 5
up to 5
External power supply, V
-
-
  Weight & Size


Body Material
Aluminium
Aluminium
Dimensions mm
250 x 90 x 75
230 x 90 x 75
Weight kg
0.72
0.66
  Warranty


Warranty on Device, years
2
2
Warranty on Batteries, years
1
1
  Trade Data


SKU (Model #)
BO300618 BO300619

Product form

With a modern, lightweight design the Thermal Handheld has the ability to hot track targets over 750 yards away. The... Read more

SKU: 000381306487
Barcode: 000381306487

Sold Out

$1,349.00 Incl. GST
