Super sensitive thermal imaging sensor

Thermal imaging sensor with NETD <25mK value ensures perfect detail recognition even in the most severe weather conditions when thermal contrast is low. The smallest temperature differences in observed objects can be clearly visible during heavy rainfall, dense fog or cold mornings making it easy to recognize and identify the game and its features.

Fast aperture f1.0 germanium optics

Quality fast aperture germanium optics ensures optimal heat energy transmissivity minimizing noise and improving detail of observed scene.

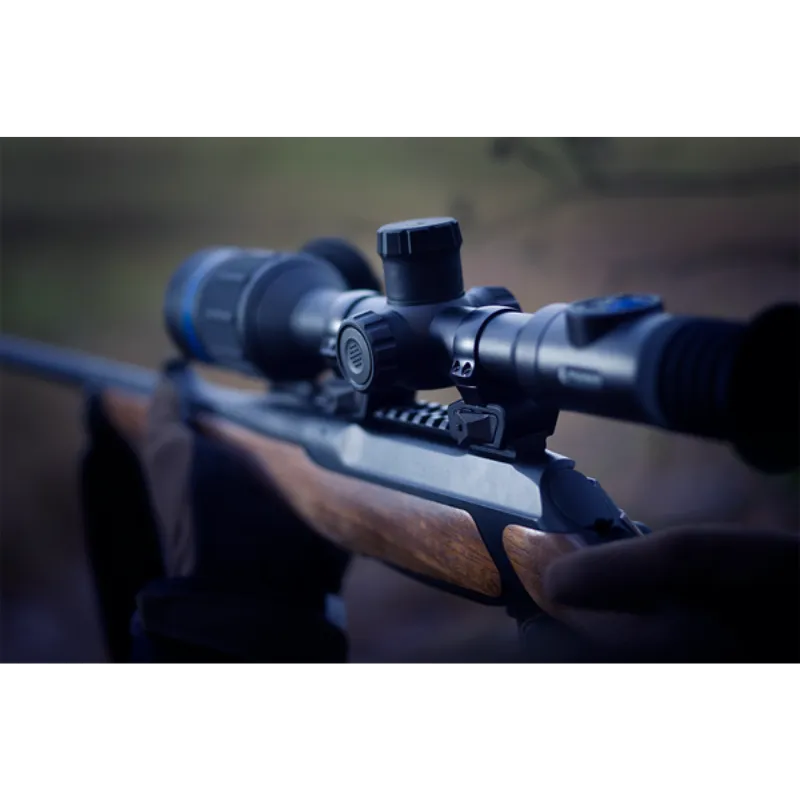

Classic design. Mounting on standard 30 mm rings

Classic shape of housing is ideal for all types of hunting and simplifies mounting. Designed from the ground up for ease of use, Thermion riflescopes mount to standard 30mm scope rings. No specialized tools or equipment are required.

Extreme detection range

High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 2.000 yards (1.800 metres) in, even in complete darkness.

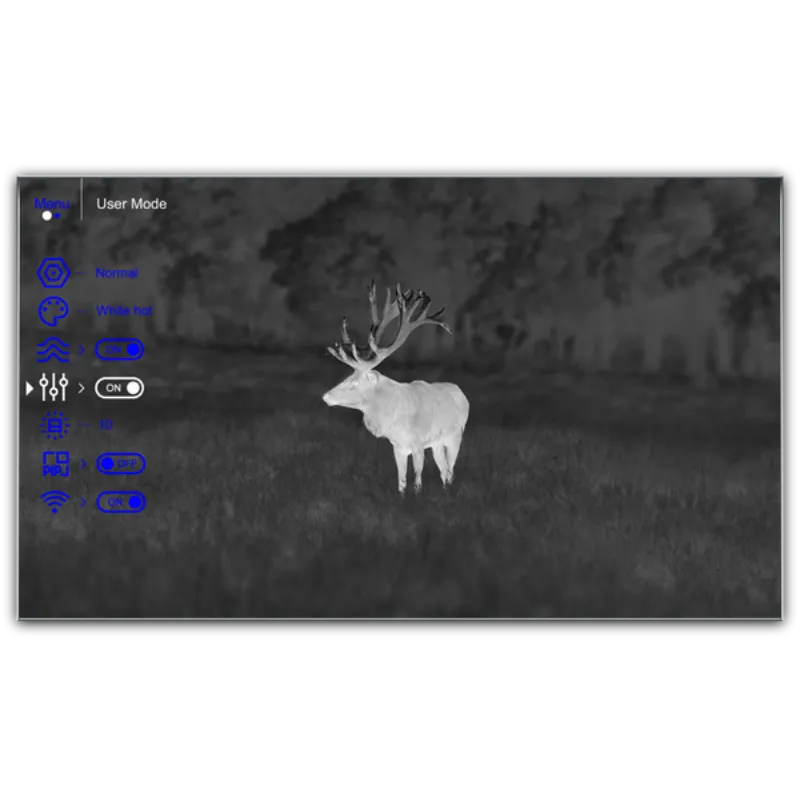

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Wi-Fi integration with iOS and Android devices. Stream Vision 2 application.

The built-in Wi-Fi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.

Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64

Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.

Long battery life. Up to 10 hours on a single charge

Thermion 2 Pro riflescopes feature a unique combined battery system consisting of two rechargeable Li-ion batteries internal and external. External rechargeable battery can be hot swapped in a matter of seconds, providing additional time during the hunt.

Variable magnification

The base magnification of Thermion 2 Pro riflescopes can be increased by means of digital zoom. Zoom changes either gradually in 2x steps or continuously offering the ideal ratio of magnification and visible field of view for specific situations.

Enhanced Wi-Fi connectivity with 2.4 / 5 GHz waveband support

In Thermion 2 PRO thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

Zeroing profiles management

Store up to 5 zeroing profiles, with 10 distance coordinates each for varying situations, in internal memory for quick rifle change-outs and on-the-fly adjustments.

A selection of 10 reticle shapes in 9 colour modes

Thermions possess a wide array of shape and color customizable reticles, including static, ballistic and scalable reticles. 9 Color options help to optimize aiming for specific conditions.

Photo and video recording

Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 16 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.

High-precision aiming in the «Picture-in-picture» mode

The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

High contrast HD AMOLED display

1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions.

A selection of 8 colour palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Completely waterproof IPX7

With an IPX7 waterproof rating, the Thermion 2 PRO riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.

SPECIFICATIONS

Sensor

384x288 pix. @ 17 µm (NETD <25 mK)

Objective lens

F50 F/1.0

Magnification, x

3-12

Field of view (HxV), degrees / m@100m

7.5/13.1

Detection range, m

1800

Sensor

Type

uncooled

Resolution, pixels

384x288

Pixel pitch, µm

NETD, mK

<25

Frame rate, Hz

Optics

Objective lens

F50 F/1.0

Magnification, x

3-12

Field of view (HxV), degrees / m @ 100 m

7.5/13.1

Eye relief, mm

Display

Type

AMOLED

Resolution, pixels

1024x768

Range Performance

Detection range, m

1800

Reticle

Click value, H/V, mm at 100 m

13 – 3x, 6.5 – 6x, 3.25 – 12x

Click range, H/V, mm at 100 m

2600/2600

Number of preloaded reticles

Video Recorder

Video / photo resolution, pixel

1024х768

Video / photo format

.mp4 / .jpg

Built-in memory, GB

Wi-Fi

Wireless Protocol

Wi-Fi

Wireless Standard

802.11 b/g/n/ac

Frequency, GHz

2.4 / 5 GHz

Environmental Characteristics

Degree of protection, IP code (IEC60529)

IPX7

Operating temperature range, °С

-25 – +50

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules

6000

Shock resistance on the smooth-bore rifles, caliber

Compatible mounts

Standard 30 mm rings

Supported Application

Stream Vision 2

Power Supply

Output voltage, V

3.0–4.2

Battery type

Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)

Capacity, mAh

2000 (external) + 3200 (external)* + 4900 (internal)

Operating time on battery pack (at t=22°C), h *

External power supply, V

5 V, 9 V (USB Type-C Power Delivery)

Weight & Size

Body material

Metal

Dimensions, mm

412x78x83

Weight, kg

0.9
