Description
Your rifle system is only as strong as its weakest point.

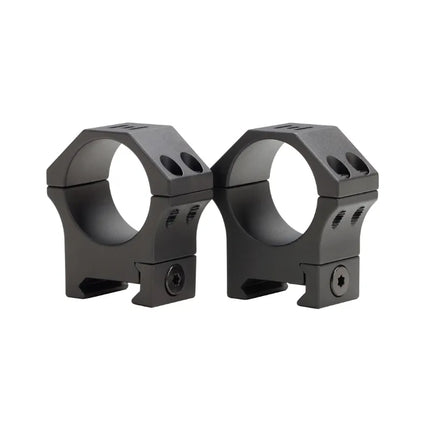

The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. We’ve designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups. There is something for everyone: These are available in both dovetail and picatinny, for 30mm and 1” body tubes, and in a variety of height options.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals. These specs can be found below in the “specs” tab.
| MODEL |
1 ”
Dovetail
L
|
1 ”
Dovetail
M |
1 ”
Dovetail
H |
30mm
Dovetail
M |
30mm
Dovetail
H |
30mm
Picatinny
L |
30mm
Picatinny
M |
30mm
Picatinny
LH |
| HEIGHT |
22.7mm
(0.97”)
|
26.7mm
(1.05”)
|
31.7mm
(1.25”)
|
27.2mm
(1.07”)
|
32.2mm
(1.27”)
|
21.9mm
(0.86”)
|
25mm
(0.98”)
|
28.9mm
(1.14”)
|
| WEIGHT (PAIR) |
72.2g
(2.55oz)
|
83.6g
(2.95oz)
|
96.2g
(3.39oz)
|
82.8g
(2.92oz)
|
96g
(3.39oz)
|
86.2g
(3.0oz)
|
98g
(3.45oz)
|
110g
(3.88oz)
|
| MATERIAL |
6061 ALUMINUM |
| MOUNTS TO |
PICATINNY | DOVETAIL |
| TOOLS REQUIRED |
T15 TORX |
| MAX TORQUE (RINGS) |
18 IN-LBS (2.0NM) |
| MAX TORQUE (BASE) |
35 IN-LBS (4.0NM) |
