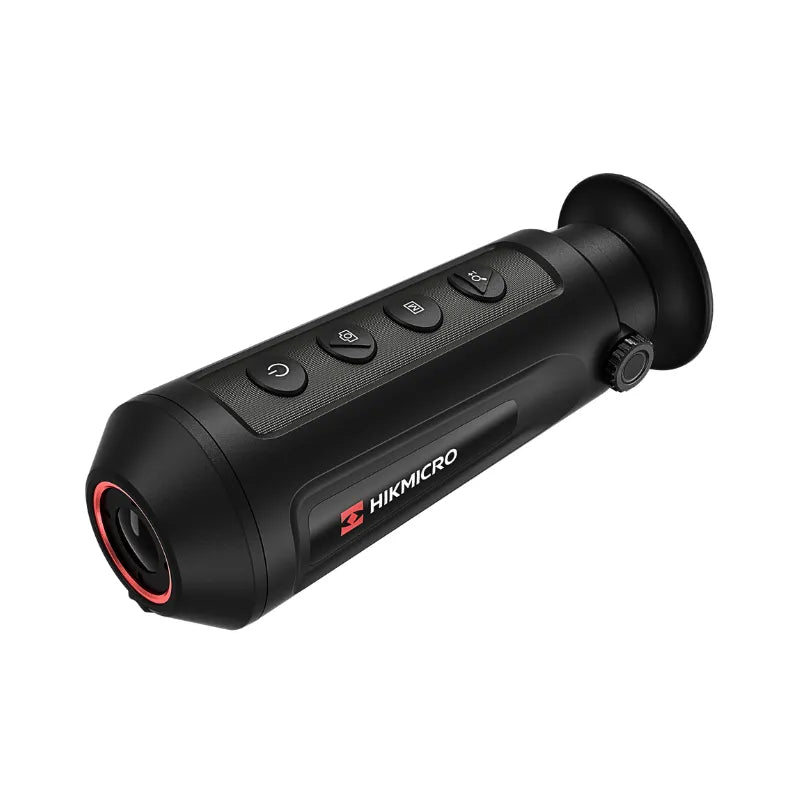

HIKMICRO LYNX PRO 15MM THERMAL IMAGINING MONOCULAR (LE15S)

Description

The HIKMICRO LYNX S LE15S Thermal Monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness.

The monocular is mainly applied to scenarios such as hunting, hiking, law enforcement and search and rescue.

Thermal Module

    Image Sensor VOx Uncooled Focal Plane Arrays
    Max. Resolution 256 × 192
    Frame Rate 50 Hz
    Pixel Interval 12 μm
    Response Waveband 8 μm to 14 μm
    NETD Less than 35 mK (@25°C), F# = 1.0
    Lens (Focal Length) 15 mm, F1.0
    Detection Range 750 m
    Focus Mode Focus Free
    Min. Focusing Distance 10 m
    Magnification 2.2× to 17.6× (8×)
    Field of View(H × V), 11.7° × 8.8° / 20.5 m × 15.4 m
    Degrees / m @100 m
    Image Display
    Display 800 × 600, 0.32-inch, OLED
    Palettes Black Hot, White Hot, Red Hot, Fusion
    FFC (Flat Field Correction) Mode Auto, Manual, External Correction
    Exit Pupil 20 mm
    Eye Relief 6 mm
    Diopter (Range) -5D to +4D
    Product form

    The HIKMICRO LYNX S LE15S Thermal Monocular is equipped with a 256 × 192 infrared detector and an 800 × 600... Read more

    SKU: 6974004643249
    Barcode: 6974004643249

    Sold Out

    $1,149.00 $1,034.10 Incl. GST

      Description

      The HIKMICRO LYNX S LE15S Thermal Monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness.

      The monocular is mainly applied to scenarios such as hunting, hiking, law enforcement and search and rescue.

      Thermal Module

        Image Sensor VOx Uncooled Focal Plane Arrays
        Max. Resolution 256 × 192
        Frame Rate 50 Hz
        Pixel Interval 12 μm
        Response Waveband 8 μm to 14 μm
        NETD Less than 35 mK (@25°C), F# = 1.0
        Lens (Focal Length) 15 mm, F1.0
        Detection Range 750 m
        Focus Mode Focus Free
        Min. Focusing Distance 10 m
        Magnification 2.2× to 17.6× (8×)
        Field of View(H × V), 11.7° × 8.8° / 20.5 m × 15.4 m
        Degrees / m @100 m
        Image Display
        Display 800 × 600, 0.32-inch, OLED
        Palettes Black Hot, White Hot, Red Hot, Fusion
        FFC (Flat Field Correction) Mode Auto, Manual, External Correction
        Exit Pupil 20 mm
        Eye Relief 6 mm
        Diopter (Range) -5D to +4D
