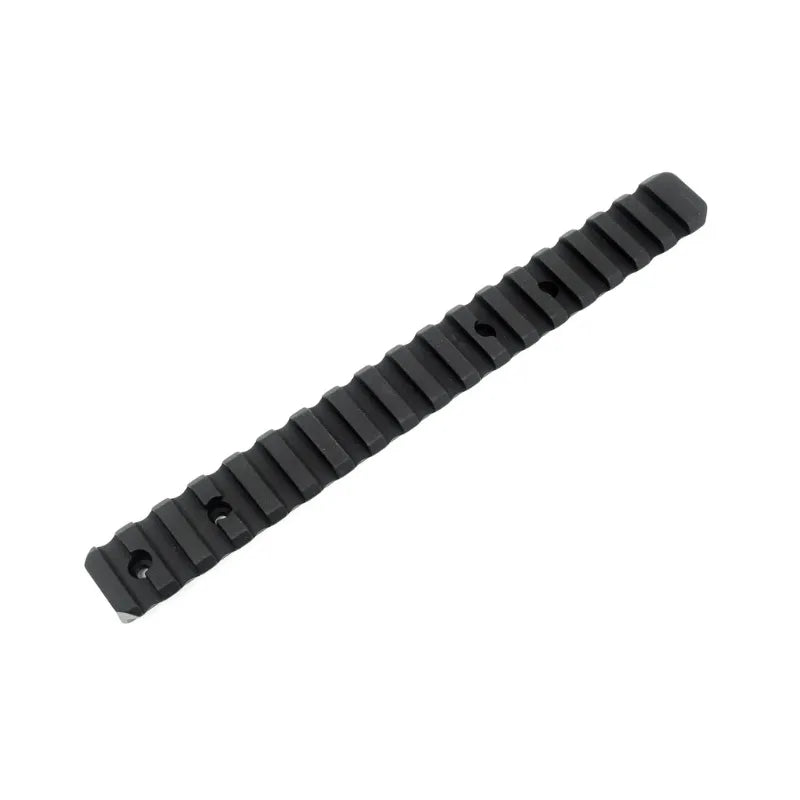

TALLEY PICATINNY BASES TIKKA T3 AND T3X 20MOA AND ANTI-CANT INDICATOR

Description

Description

  • American Made, Lightweight 7000 Series Aluminum Alloy
  • Fully CNC Machined
  • Hard-coat anodizing to 65 Rockwell
  • Designed in accordance with the MIL-STD-1913 Pic Rail specifications
  • Available in 0 and 20MOA.
  • Includes mounting screws and wrench. (1/4 6-48 Screws / T-15)
  • Designed to fit Tikka T3 and Tikka T3X bolt action rifles.

Tikka T3 Picatinny Rail – Product Dimensions and Weights



 MOA Rear Height1 Hole2 1 ↔ 2 Hole 2 ↔ 3 Hole 3 ↔ 4 Front Height3 Overall Length Weight
Standard .380″ .858″ 3.246″ .858″ .380″ 7.46″ 2.4oz.
20MOA .380″ .858″ 3.246″ .858″ .350″ 7.46″ 2.3oz.



1 The Rear height is measured at hole 1; from the top of the action to the top of the rail.

2 Hole 1 is closest to the shooter and Hole 4 is closest to the muzzle. Hole spacing was measured center to center.

3 The Front Height is measured at hole 4; from the top of the action to the top of the rail.

 Torque Recommendations for the Tikka T3

  • Tikka T3 Picatinny Rail to Action: Torque can depend on the receiver. Please check with the rifle manufacturer (Tikka) to verify the allowable torque in the receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to scopes or firearms due to over-torquing

 Should I use Loctite on my Tikka T3 pic rail?

  • Although not always necessary, using Loctite for the screws going into the receiver is perfectly fine. We do not recommend using anything stronger than Loctite Blue 242. We do not recommend using Loctite on the ring screws. Always test fit before applying any Loctite.

Tikka T3 Picatinny Rail Scope Ring Options

One of the great benefits of the Picatinny rail option is that when designated a “Picatinny Rail”, the dimensions follow an established industry standard (MIL-STD-1913 rail). As a result, any scope ring designed to fit a true Picatinny Rail will work on this Tikka T3 Pic rail. Following the Picatinny rail spec, Talley Manufacturing offers a variety of Picatinny Ring options to meet the needs of all shooters.

 As we look around the world of rifle scopes, we are seeing many manufacturers shortening up the mounting surfaces of scopes. These shorter distances combined with the fixed mounting location on the rifle tend to limit the range of eye relief adjustments. This is one of the primary reasons many find their best option to be the Picatinny rail.

With established dimensions that repeat down the length of the Tikka T3 Pic rail, the shooter is given the greatest flexibility in eye relief and mounting options over traditional systems such as the weaver base option. The Tikka T3 Pic Rail is a simple solution to achieve the best eye relief when mounting a scope, red-dot or night optic regardless of the mounting surface distance.

 THE TALLEY GUARANTEE

NOTHING IS TOUGHER THAN A TALLEY
The Talley Guarantee: At Talley Manufacturing, we place our customers first. All our products carry a money-back guarantee. If you are not completely satisfied, we make sure you will be. We want you to know you’ve just purchased the best.

99.6% Positive Feedback * Get the item you ordered or your money back
